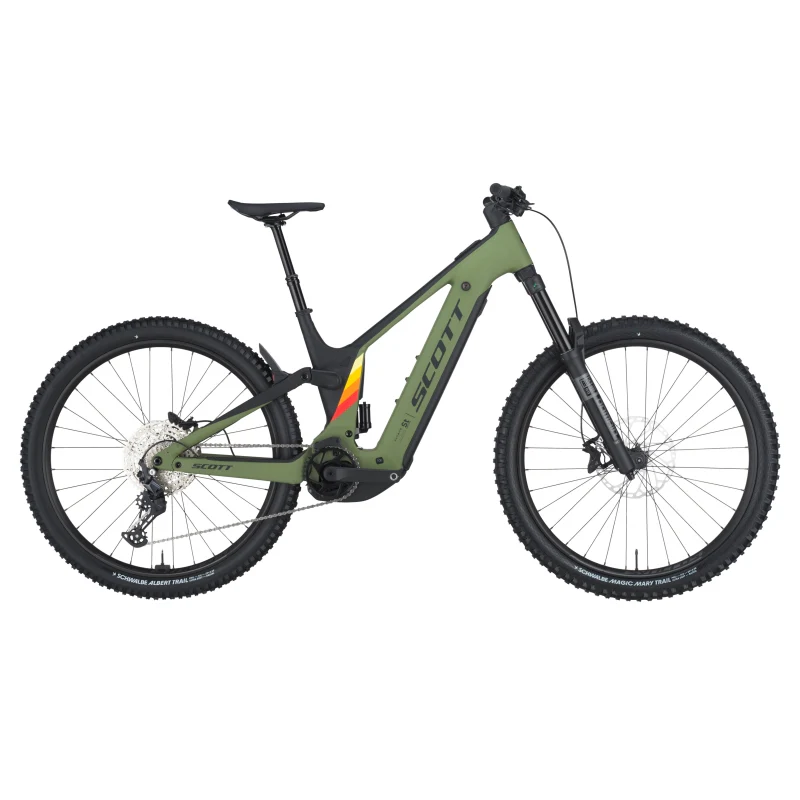

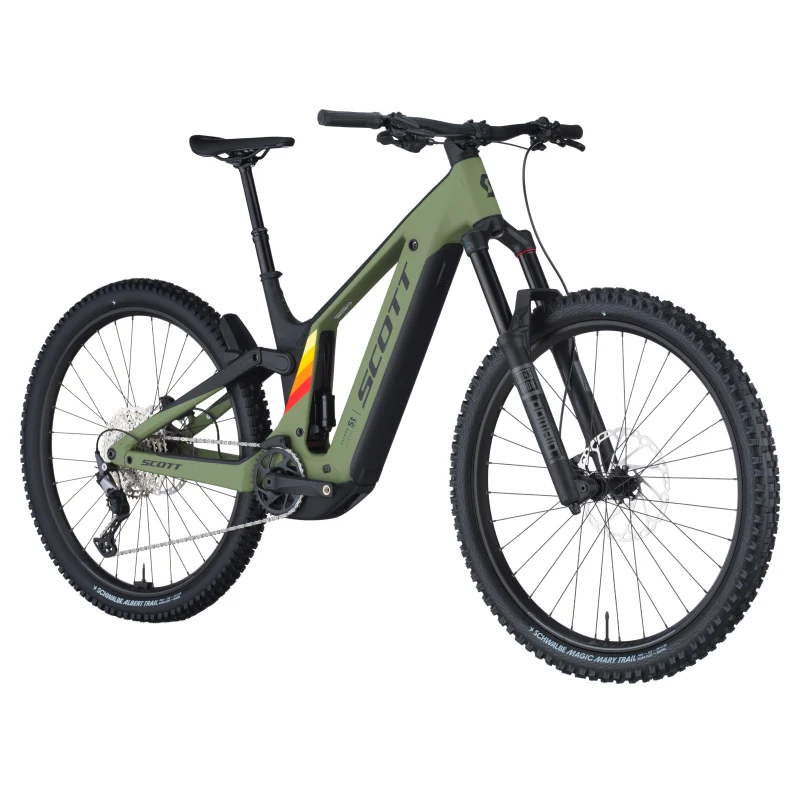

About Scott Patron ST 910 2025
The strength of a powerlifter, with marathon endurance and the physique of a gymnast. For the hard-charging riders looking to take on the wildest mountains, The ALL-NEW Patron eRIDE ST holsters the cutting edge of full-power motor and battery technology in an aggressive package built for singletrack domination. Harness the power. Master the trails.

Features

RS Domain R 170mm Fork

RS SuperDeluxe PiggyBack, 150mm

Shimano Deore 12 Speed

Shimano Deore 4 Piston Disc Brakes

Schwalbe Foldable Tires

Syncros Dropper Post and Parts

Syncros int. rear fender light

Bosch Performance CX Drive Unit with 800Wh Battery

Frame Geometry (units in mm unless otherwise indicated)

	S	M	L	XL
HEAD TUBE ANGLE	64.9 °	64.9 °	64.9 °	64.9 °
HEAD TUBE LENGTH	120.0	125.0	135.0	145.0
TOP TUBE HORIZONTAL	582.4	607.9	629.7	660.2
STANDOVER HEIGHT	719.0	719.0	729.0	732.0
BB OFFSET	-28.4	-28.4	-28.4	-28.5
BB HEIGHT	348.6	348.6	348.6	348.5
WHEEL BASE	1,222.3	1,244.5	1,274.2	1,308.0
BB CENTER TO TOPTUBE CENTER
BB CENTER TO TOP OF SEATTUBE	405.0	435.0	470.0	500.0
SEAT ANGLE	76.4 °	76.3 °	76.3 °	76.3 °
CHAINSTAY	454.0	454.0	454.0	454.0
REACH	428.3	448.3	473.9	503.4
STACK	650.5	655.0	664.2	673.3
STEM LENGTH	50.0	50.0	50.0	50.0
TRAIL	127.9	127.9	127.9	127.9
FORK LENGTH	584.0	584.0	584.0	584.0
MAXIMUM SEATPOST INSERTION	200.0	230.0	265.0	295.0
CRANK LENGTH	165.0	165.0	165.0	165.0

Please note that bike specifications are subject to change without prior notice.

About Scott
Scott Sports was founded in 1958 by Ed Scott in Idaho, USA and operates its headquarters from Givisiez, Switzerland. They produce bicycle, wintersport, motorsport and running equipment. They are known for their innovative products which have been used to win world championships and races at the highest level.
