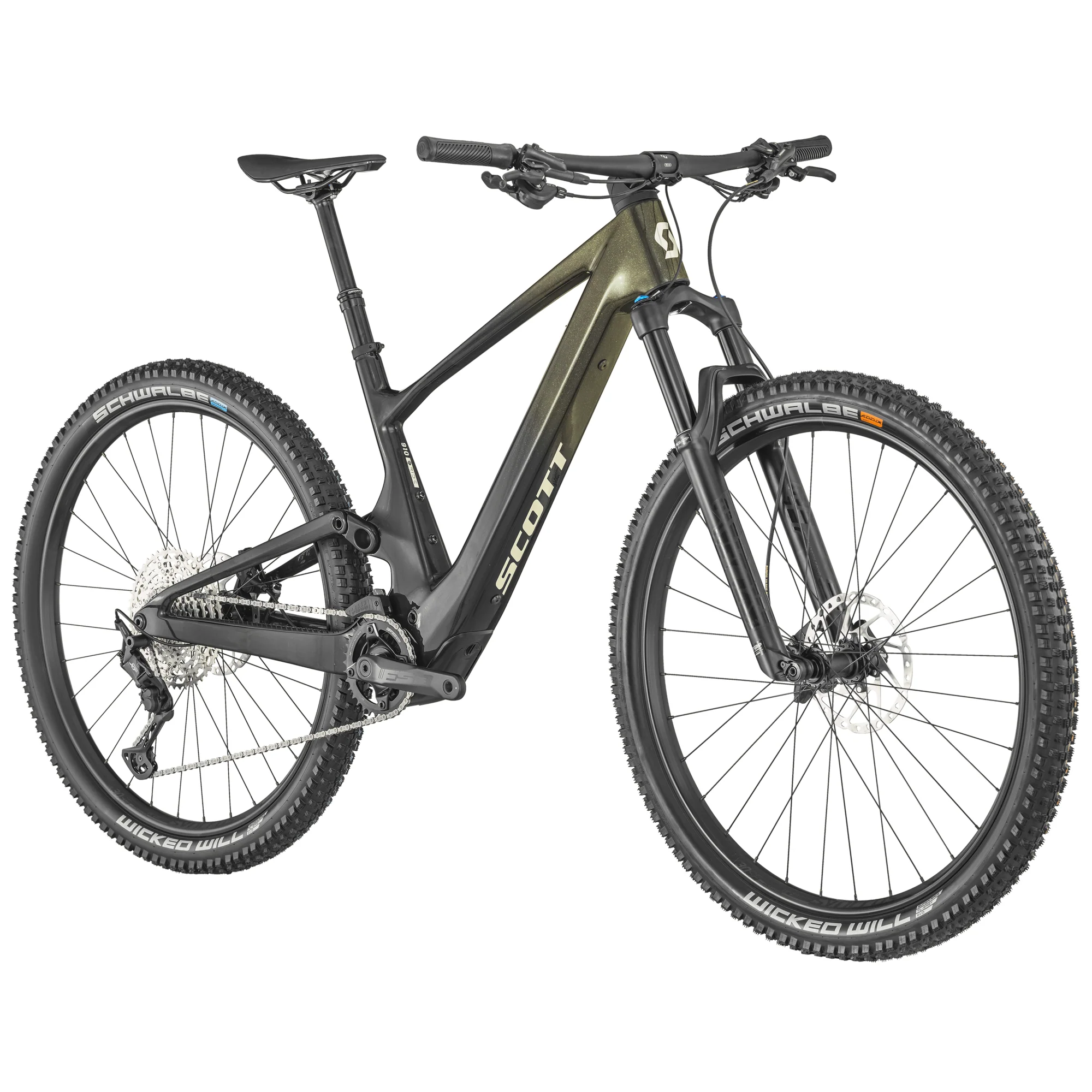

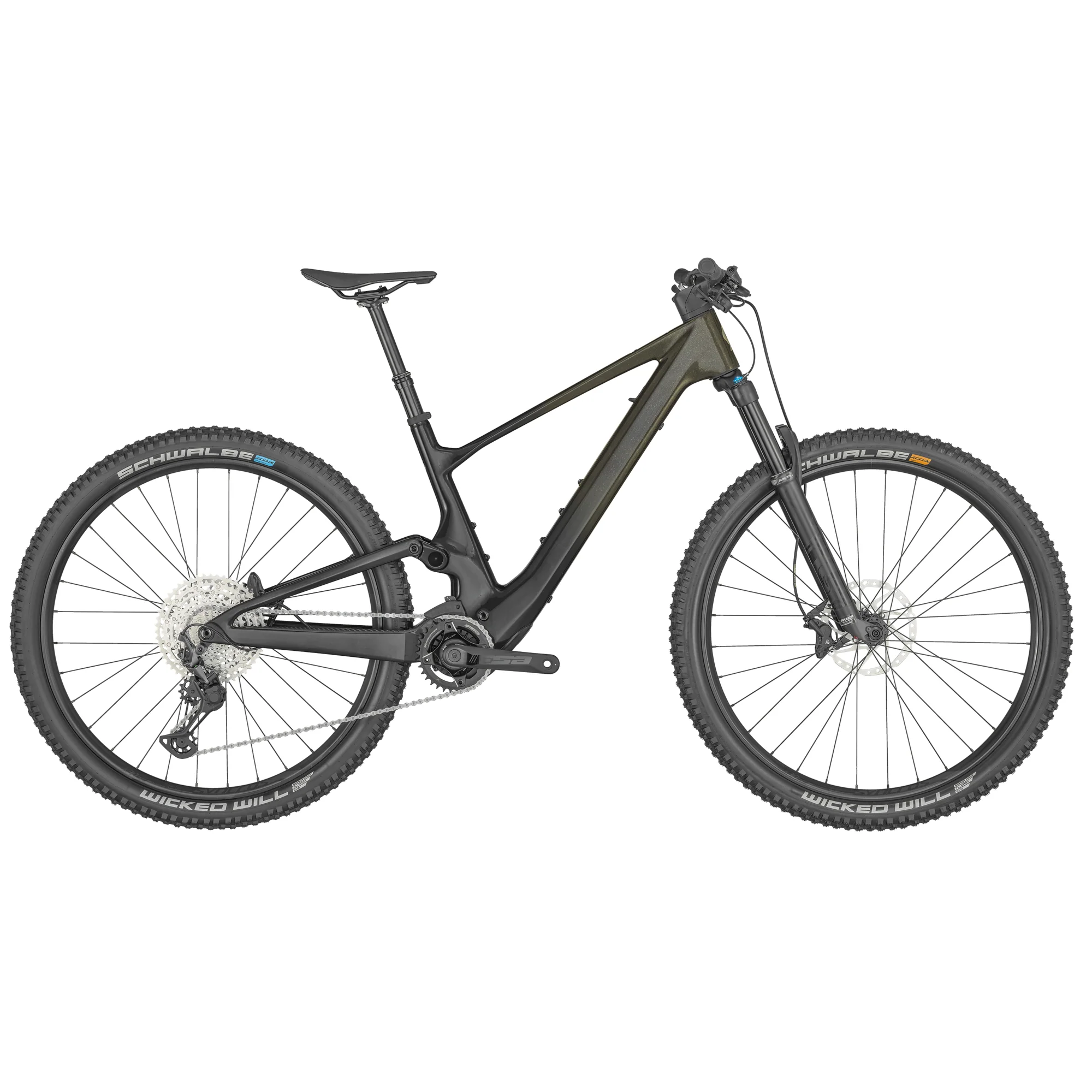

About Scott Lumen eRIDE 910 2024
When it comes to the design of Scott's E-MTB range of eRide bikes, their goal is to always provide the best e-bike possible to the consumer. Drawing from decades of knowledge, Scott works with a team of engineers and designers who specialise in electric bikes to do just that. Explore the electric assist bike technologies and see why the Scott eRide range is one step ahead.

An E-MTB at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.

The ride feel is like a regular bike: no need to think about a longer braking distance, pedal drag or weight, as it’s even possible to ride the bike with the assistance switched off. This is an E-Bike for a mountain biker, with all the benefits of a regular bike, now with added assistance to get you up those hills faster to enjoy riding further and for even longer.

What's New
HMX Frame

TQ HPR50

Syncros Grips

Features
2 Batteries - 1 Internal, 1 External: The Lumen features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Thanks to TQ’s electronic expertise, the HPR50 battery, when combined with the range extender, guarantees maximum performance right through until empty.

2 Water Bottle Mounts: Unlike most full suspension E-Bikes, on the Lumen there is no need to choose between the range extender or a water bottle - between longer rides and staying hydrated. Thanks to the integrated shock there is space for both an external battery and water. An optional sliding mount system also allows an easy switch between the rear water bottle and the range extender, allowing both to be easily transported when out on longer rides.

Compact Powerful Assistance: TQ is a German company founded in 1994 who specialize in electric components across a range of industries. The HPR50 delivers an unprecedented weight/power ratio of 1.8 kg for 50Nm. With a diameter of 8 cm, TQ has innovated by using a harmonic gear system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience. After all, you are in the outdoors to, well, enjoy the outdoors.

Q-Factor: The TQ motor allows us to keep a standard Q-factor with a 55mm chain line – exactly the same as the Scott Spark. This allows us to do a few interesting things. Firstly, we can guarantee great tire clearance while not sacrificing stiffness – which is key when it comes to power transfer. Secondly, it gives you the exact same rider stance and pedal width as on a regular bike.

Handlebar Remote: The system can be controlled via a minimalistic handlebar remote paired to the integrated top tube display. The modes are easy to switch through, and, thanks to the ergonomic placement on the handlebar, can be easily controlled whilst riding, as well as when using Walk Mode.

Always Connected: To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar. The LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter. Want more? Link up your phone and dive deep using the TQ E-Bike app. Utilizing the built in ANT+, the system easily connects with a bike computer such as a Garmin, Hammerhead or Wahoo unit.

Track Your Rides: The TQ app offers real benefit and is easy to use. It’s easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can further tune your drive unit to either save battery life or maximise the power output. You can also customize the display, altering the order and number of screens available, turn on and off control sounds etc.

Better Protection, Stiffer Construction: The Lumen uses the same suspension layout as featured in the SCOTT Spark, now a double World Championship winning bike. Our integrated suspension technology also helps us to engineer frames with a lower shock placement which lowers centre of gravity Why integrated you ask? Well for one, we think it looks fantastic. But also keeps the shock fully protected from any foreign elements. Rainy wintry ride? No problem, your shock will continue to perform at its best regardless.

Easy Access: Accessing the shock via the bottom bracket area is facilitated through a hatch. This makes it easy to adjust rebound, compression, shock pressure, and for installing or replacing the cable for our TwinLoc Suspension System.

TwinLoc Suspension System: The Lumen features our Twinloc Suspension System. With the remote, the user has the ability to choose from three ride modes; descend, traction control and lockout, effectively changing the bikes geometry, suspension damping and spring curve simultaneously. Our lever also features the dropper post actuation below the bar. This ergonomic solution puts all of the bike’s controls in one place making them easily accessible on the fly.

Frame Design: Taking inspiration from the Spark, the objective was a riding position that feels just like a regular bike. Scott wanted the ability to descend like a trail bike without sacrificing anything when you need to put the hammer down, and a trail bike that can fly up the hill to do it all again on the next descent. If you prefer a more aggressive ride, the head angle of the Lumen can be easily adjusted through one of 3 positions. The geometry chart is based around the head angle of 65.5 degrees. Scott's adjustable headset cups allow for a steeper or slacker angle by .6 degrees in either direction.

About Scott
Scott Sports was founded in 1958 by Ed Scott in Idaho, USA and operates its headquarters from Givisiez, Switzerland. They produce bicycle, wintersport, motorsport and running equipment. They are known for their innovative products which have been used to win world championships and races at the highest level.
