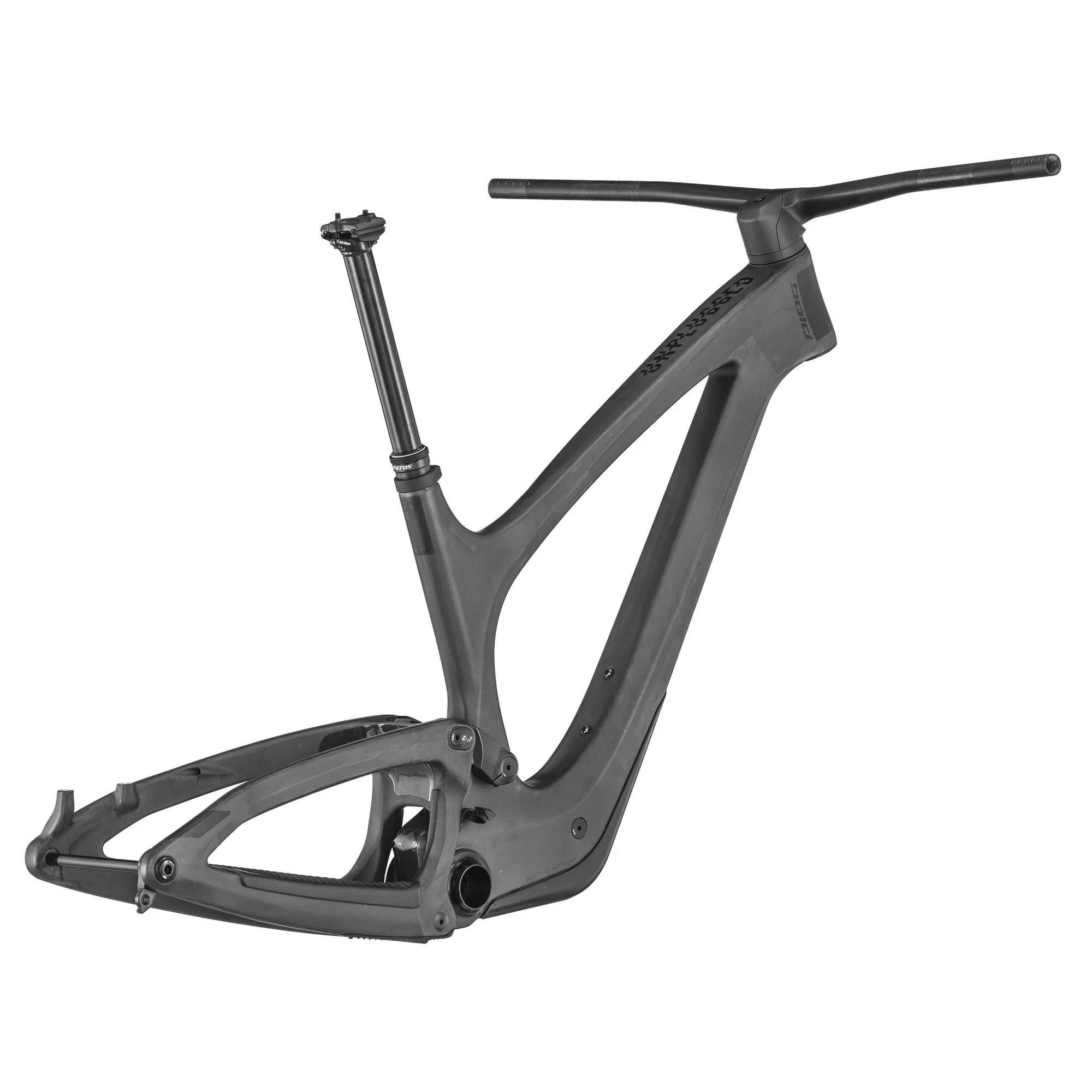

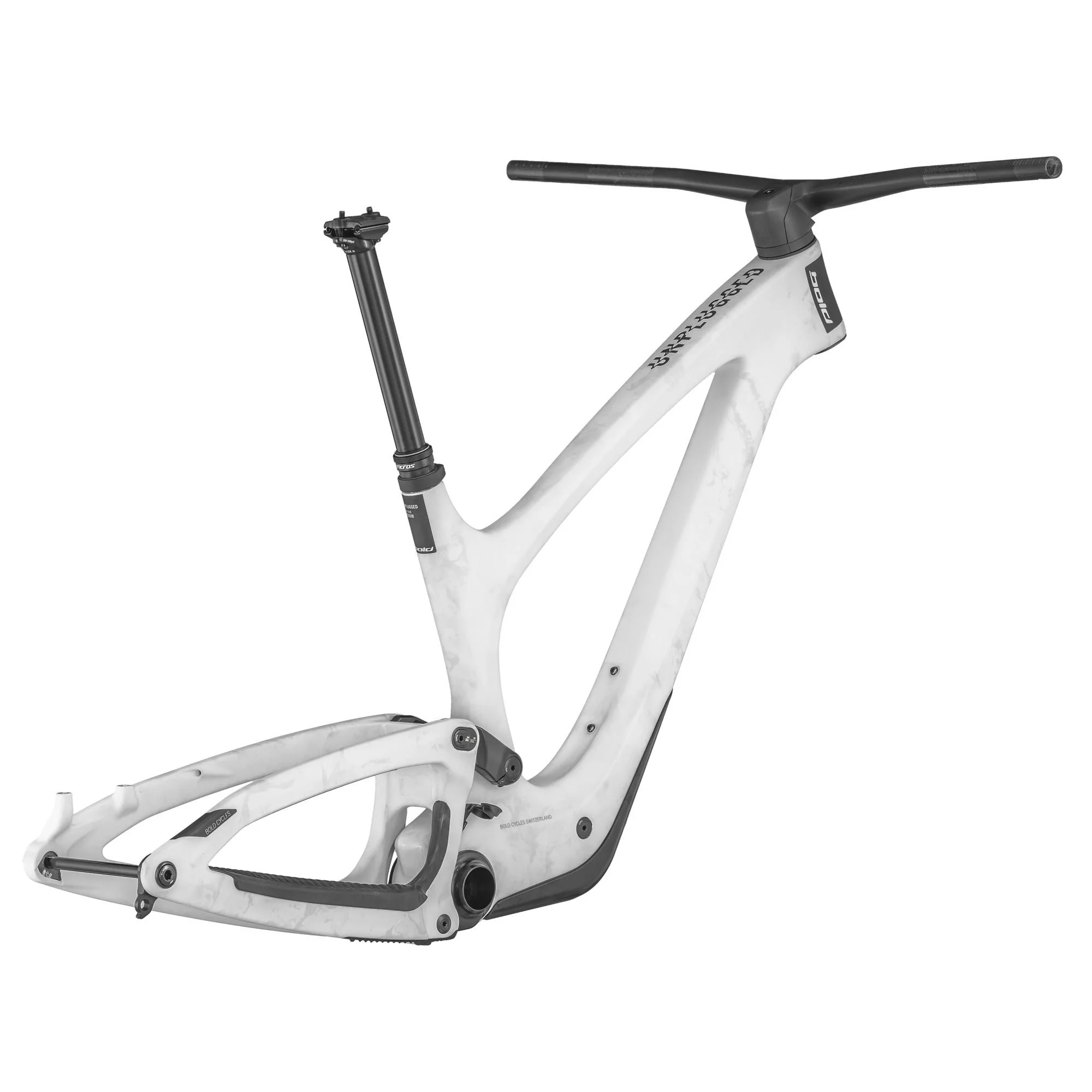

About Bold Unplugged Frame Set
Berm slayer, traction machine, race rocket - this bike has many names but one common theme, the BOLD UNPLUGGED is as Enduro as it gets. Equipped with enough travel to stand the biggest impacts and hold the roughest lines, the ISTVP suspension design delivers suspension feel from another world. At the same time the stiffer frame layout gives the UNPLUGGED precise gravity-oriented ride characteristics uncompromised for raw speed and performance. With wheels glued to the ground, the low center of gravity keeps the bike planted and provides a stable and controlled riding. Ideal for racers and park rats alike, the UNPLUGGED means business. To send you right on the journey to custom build a UNPLUGGED, all frame sets come with a pre-installed TracLoc System, Syncros Duncan Dropper, and Hixon Carbon Handlebar.

Features
UNPLUGGED Carbon HMX Frame

FOX Float X Nude, TracLoc, 160mm

Tracloc Remote Control Shifter Kit

Syncros Hixon iC Carbon

Syncros Duncan Dropper 1.5 34.9mm

Frame Geometry (units in mm unless otherwise indicated)

Frame	S	M	L	XL
Head Tube Angle (Degrees)	63.2/63.6	63.2/63.6	63.2/63.6	63.2/63.6
Head Tube Length	90	105	120	135
Top Tube Horizontal	548.6/547.3	595.5/594.1	628.5/627.0	661.4/660.0
Standover Height	693	715	733	762
BB Offset	-21.3/-16.4	-21.1/-16.1	-20.9/-15.8	-20.7/-15.6
BB Height	340.2/345.1	340.3/345.3	340.3/345.3	340.3/345.3
Wheel Base	1205.2/1206.6	1246.9/1247.9	1283.5/1284.5	1320.1/1321.1
BB Center To Top Of Seatube	381	403	435	470
Seat Angle (Degrees)	78.5/79.0	77.7/78.1	77.7/78.1	77.7/78.1
Chainstay	438.4/439.2	438.4/439.2	438.4/439.3	438.4/439.3
Reach	423.3/427.3	458.3/462.2	488.3/492.2	518.3/522.2
Stack	617.6/614.8	631/628.2	644.5/641.5	657.9/654.9
Stem Length	40	40	40	40
Maximum Seatpost Insertion	217	240	275	320

About Bold Cycles
Founded in Lengnau, a small village near the Jura Mountains in beautiful Switzerland in 2015, Bold Cycles are an innovative, cutting-edge bike company with the goal of providing riders with the most progressive, cutting-edge bikes on the market. They question design and technology and rethink the conventional by pushing through boundaries where innovation takes place and new rules are born.
